Varied Parking Solutions
Hydraulic Pallet Puzzle Parking Systems
Lift slide in vertical and horizontal way by a pump station hydraulic drive cylinders with steel wires; It is the safest design by fixed cylinder stroke, fast speed about 20m/min, low noise and saving electricity. It is popular constructed in public airports, hospitals, shopping malls, mostly for real estate parking areas solutions; Designed from 2 levels to 15 levels; Popular for 6 levels 2000kg Sedans or 2500kg SUVs; PSH2 basement parking or on the ground solutions for construction projects, PSH2 also has back cantilever design for easy parking.
Auto Comb Puzzle Puzzle Parking Systems
This system is our new designed model of parking system adopting COMB EXCHANGE PALLETS with own power devices; designed SLIDING COMB TURNTABLE PALLET for exchange at ground level, it can take the car at any columns sliding into the entrance; Driven by large hydraulic large transmission ratio; This design can be max 35 levels with fast speed about 70m/min by automatic operation; it can be full on the ground parking from front side, also can be side entrance saving drive way in narrow land area, it can be also half ground or full underground design; It is popular and welcome by Real Estate solutions.
Pit lift Parking Systems
This design can be underground from 3 to 1 levels in the pit and from 1 to 30 levels on the ground by only lift-slide actions or only lift and down by 3 cars each column; It is popularly welcomed by Real Estate construction companies for parking solutions; Saving land area and takes full use of the underground area. It can be designed with neighbored multi-columns to raise the parking numbers of cars. It can be designed with full-closed style to adjust the surrounding environment; It operates steadily without noise and with fast operating speed and short parking and releasing time;
Easy Parking Lifts
Simple car parking lift for family garages or public basement area; Two post park lift can be 2300kg to 3200kg by manual operation, it can be linked design or independent lift outside area or inside the house; Four post park lift is independent for 2 cars parking; Tilting car park lift is usually in the low limited height area for double parking solutions; Double cylinders drive with grades lock safety and multi-protection devices; Motor drive 2 cars park lift faster speed and also an option;

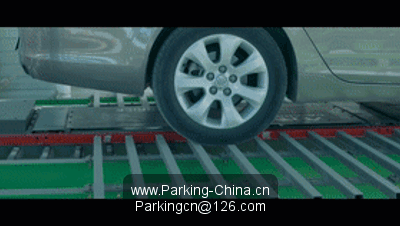

Auto Cabinet Parking Systems
This vertical intelligent parking system is designed to parking cars from 4 levels to 12 levels; Max can do 15 levels; It can realize 10 times parking spaces than ground parking; One or more car entrance/Exit can be designed;When parking, only drive the car onto the parking platform in front of the car entrance door, Mostly IC card operation, when card reading, the door opens automatically, the intelligent carrying trolley will take the car to the appointed position automatically along the passage by lifting, sliding, turning actions; The trolley will release the car to the correct space and back to original position;
Auto Circular Parking Systems
The shape of the parking system is cylinder or multi prism. The structure can be divided into inner cylinder and outer cylinder. The inner cylinder is the lifting channel which consists of lifter, turntable, layer levelness system and carrier. The outer cylinder is the parking area which is under radiate arrangement. 6-12 car spaces can be set at each floor. Entrances can be at any direction based on the parking area; It can be set full on the ground, half ground, and full underground; Entrance observation mirror, voice prompts, LED display are equipped. It is high efficient smart intellectual parking system operated by APP.
Auto Stacker Parking Systems
Two types of stacker parking solutions; Traditional stacker, Each layer has a carrying trolley; the trolley will carry the car to the parking space or put it on the car elevator to realize parking or retrieving.This full automatic parking system adopts wheels clamped mode, designed with lifter,sliding trolley,carrying cart; Central control room with PLC auto control system; ID card auto mode / Screen touching auto mode/ Button manual mode; Supervision monitoring system: Closed monitoring system; LED guiding monitor can show all orders and signals, such as over length, over width, over height, car position, operation moving process; New Stacker Parking System-360 degree hanging robot stacker system; This type of stacker has the ability of lifting, sliding and turning.
Tower Parking Systems
Tower parking can realize parking 70 cars in only 3 cars area; Max can do 35 levels. It has 2 modes of drive: Hydraulic drive and Traction drive; Mode of operation: Manual or IC Card reading; Traction drive speed can reach 120m/min, and hydraulic drive can reach 60m/min; It is more flexible and higher usage of land space, also the replacement type of vertical lifting parking system; This system max can do 35 levels; the parking levels and spaces can follow customer requirements.
Smart Vertical Rotary Parking Systems
This is popular welcomed type of
parking solutions especially in Overseas countries;
It is the designed system that an
automobile is put in the cage, the cage rotates up and down as well
as right and left and then the automobile is parked.
Designed from 8 cars to 20 cars each system, both designs for full
Sedans or full SUVs; Suitable at narrow 2 cars area with easy and
Bus Parking Systems
The bus parking system is specially designed for the bus. It is like the storage of shipping containers. Each car space is a cabinet. It will achieve the bus's actions of lifting, sliding and turning by a "sky-crane". Mostly designed for Bus Company storage, Bus drivers rest in bus middle way station, Electric Bus Charging at night, Bus Turning in the way;
